Ballasted PV Mounting Console K9110 for Flat Smooth Roof Surfaces at Cusmade Europe

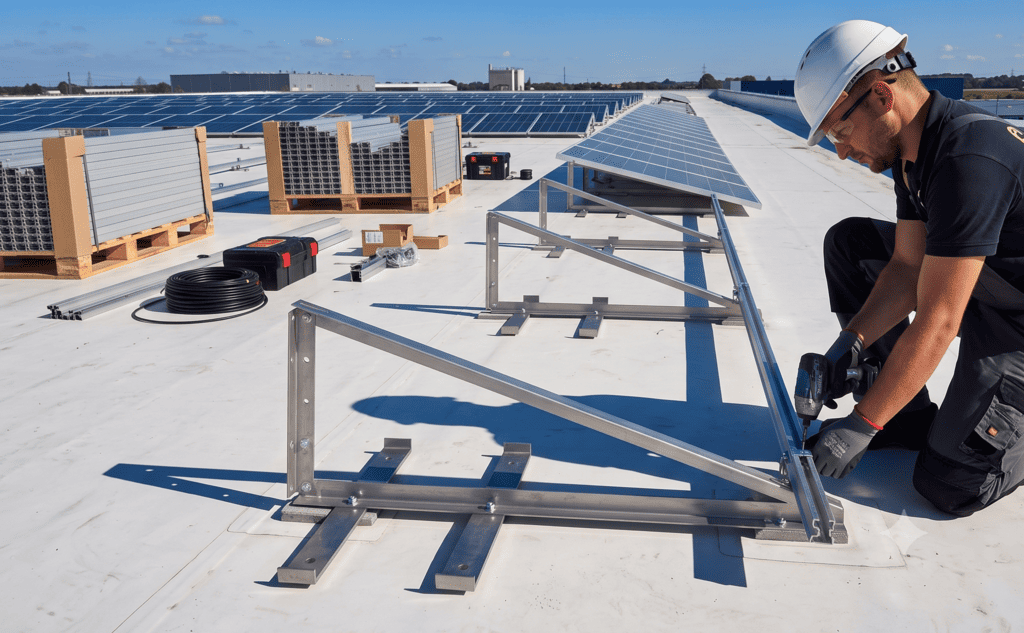

The tilt-adjustable K9110 mounting console with side tabs is the professional, non-penetrating system solution for elevated horizontal installation of photovoltaic modules on flat, smooth roof coverings. Unlike mechanical screw-fastened alternatives, this system is installed completely without roof penetration. Structural stability against wind uplift and shear forces is securely achieved through vertical ballasting using weights such as concrete blocks, paving slabs, or sandbags.

Specially engineered mounting tabs are integrated onto the bottom sides of the console frame, securely holding and supporting the ballast elements. To prevent localized point loads and permanently protect sensitive roofing membranes, a flexible rubber protection mat is laid beneath the mounting tabs and ballast weights, ensuring optimal load distribution across the flexible substructure.

A key advantage of the K9110 console is its angle regulation ranging from 15° to 30°. This allows precise alignment of solar modules in landscape (horizontal) orientation to maximize specific yield on flat or low-pitch roofs. The system flexibly accommodates panel lengths from 1600 mm to 2300 mm and panel widths from 992 mm to 1152 mm.

For exceptional resistance against aggressive weather conditions, the K9110 system is manufactured from high-strength structural steel featuring a premium Magnelis® anti-corrosion coating. This guarantees long-term operational reliability on industrial halls, commercial buildings, and agricultural facilities.

Thanks to certified manufacturing standards (TÜV Rheinland / EN 1090-1 & CE) and factory precision engineering, the K9110 system offers maximum load capacity, rapid assembly workflows, and maximum safety for system designers and professional installers.

As a specialized B2B wholesaler, Cusmade supplies K9110 ballasted PV tilt consoles direct-from-factory from Poland—delivering certified industrial quality under highly competitive wholesale terms.
