Ballasted PV Mounting Consoles K8000 for Flat Roofs at Cusmade Europe

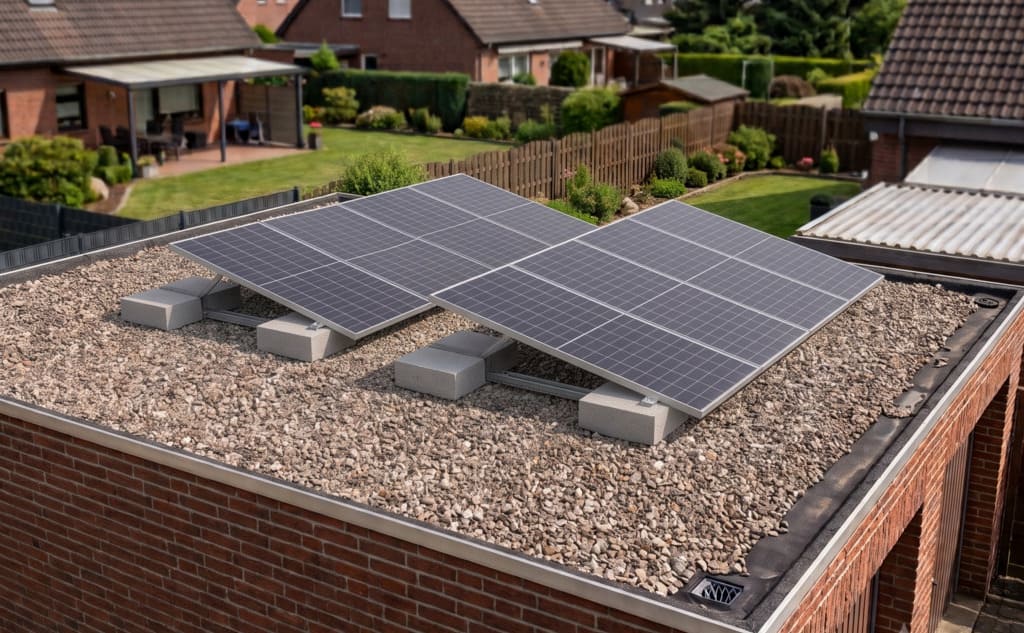

The K8000 series flat roof mounting system provides a professional, non-penetrating solution for installing photovoltaic modules on sensitive roof membranes. To protect the roof covering (such as foil, bitumen, or gravel roofs) from damage and leaks, the mounting consoles are installed completely without roof penetration. Structural stability is securely achieved through vertical surface loads using ballast elements such as concrete blocks, paving slabs, or sandbags.

To reliably prevent localized point loads caused by the ballast weights, a flexible rubber protection mat (building protection mat) is placed between the weights and the roof membrane or gravel bed. This ensures optimal load distribution across the flexible substructure and permanently shields the waterproofing material from mechanical stress.

A key structural feature of the K8000 (Portrait) system is the discreet positioning of the ballast elements directly underneath the PV module area. This creates a clean, unobtrusive aesthetic while maintaining maximum resistance against wind suction and uplift forces. The extendable and variably adjustable rail system allows highly flexible configurations for diverse panel sizes up to 2115 mm in length and 1400 mm in width in portrait orientation, as well as in landscape orientation.

For maximum durability under extreme weather conditions, the supporting framework is manufactured from high-grade structural steel with a premium Magnelis® anti-corrosion coating. The system offers adjustable tilt angles ranging from 10° to 20°, optimizing solar yield for any specific site location.

Thanks to certified manufacturing standards (TÜV Rheinland / EN 1090-1 & CE) and factory precision engineering, the K8000 system guarantees high planning security and rapid on-site assembly.

As a specialized B2B wholesaler, Cusmade distributes K8000 flat roof mounting systems direct-from-factory from Poland delivering certified industrial quality under highly competitive wholesale terms.
