Versatile K500® PV Solar Carport H1 at Cusmade Europe

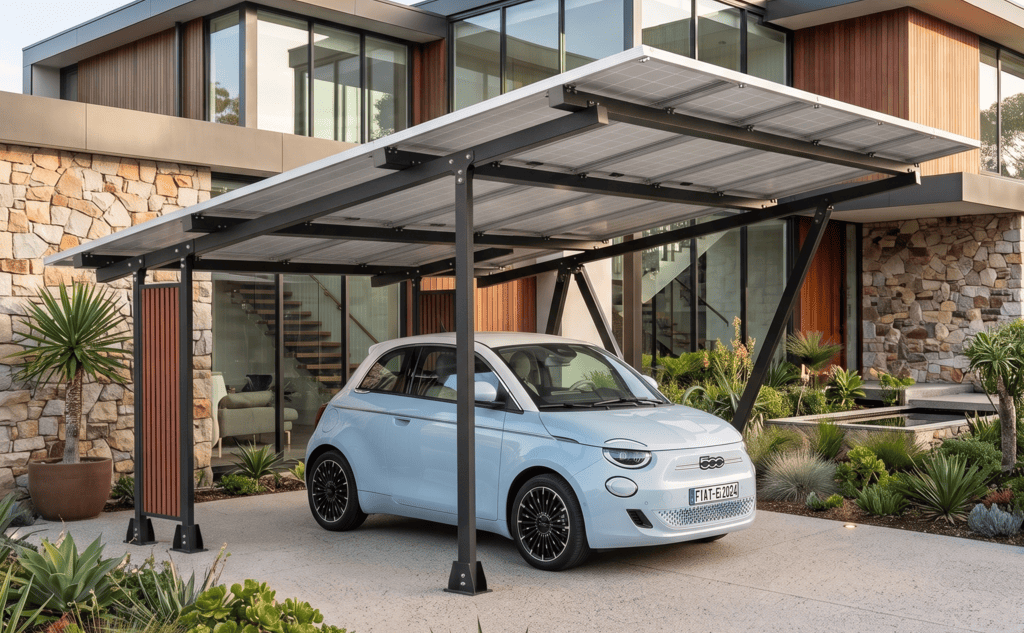

The PV Carport H1 from the established manufacturer K500® sets new standards for flexible solar canopy systems in residential and commercial environments. Equipped with an innovative adjustable rail system, the H1 model delivers maximum compatibility with virtually all market-standard PV modules in widths ranging from 992 mm to 1,200 mm and lengths up to 2,320 mm. Whether utilizing monofacial, bifacial, or full-screen technology, the universal mounting structure accommodates diverse module types effortlessly. The robust single-vehicle base module engineered from powder-coated steel profiles is designed for 9 photovoltaic modules in a vertical 3×3 layout at a fixed tilt angle of 7.5°.

Beyond high structural stability and a comfortable drive-in width of up to 3.78 m, the Carport H1 features impressive aesthetic versatility: both the load-bearing frame and the optional side louvers/slats can be tailored in custom colors. The powder-coated steel structure in sleek RAL 9005 Black enables particularly rapid and straightforward site assembly.

At the core of the system is the sophisticated, 100% leak-proof K500® Aluminum Drainage System featuring wide primary gutters and side channels for high-capacity water runoff. This internal drainage principle mirrors professional West European conservatory construction: any condensation or drip water is safely intercepted by internal drainage channels and controlledly discharged.

The high-grade material combination of powder-coated steel and anodized aluminum delivers superior mechanical strength and long-term corrosion resistance. It is easily and securely anchored to concrete foundations via engineered metal base consoles.

As a specialized B2B wholesaler, Cusmade distributes the K500® Carport H1 system direct-from-factory from Poland—combining certified engineering with highly competitive wholesale terms.
