Commercial K500® PV Solar Carport K6200Z at Cusmade Europe

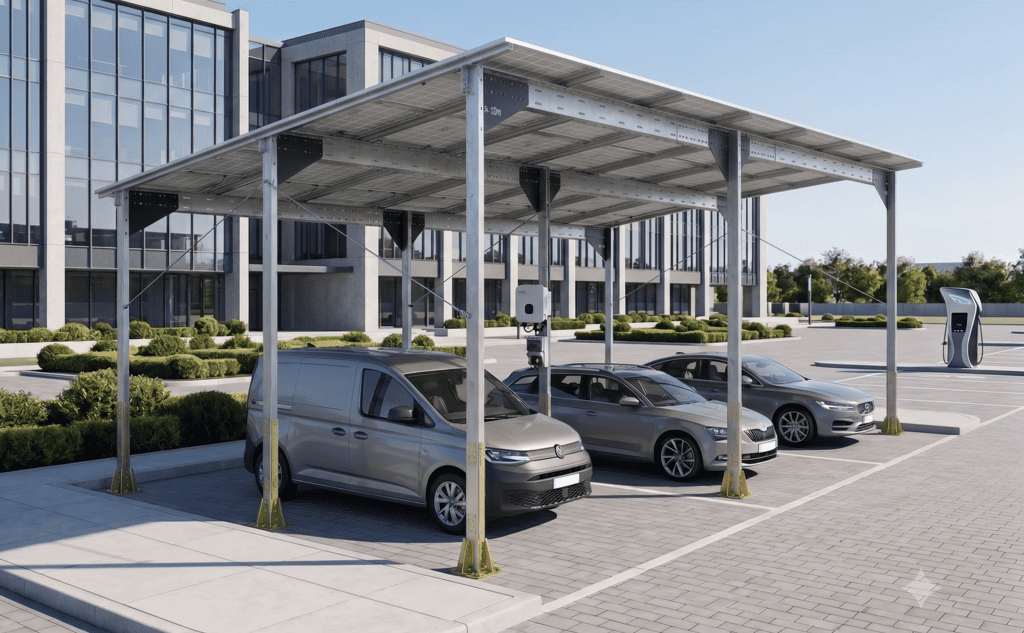

The PV Carport K6200Z from the established manufacturer K500® is an advanced, modular heavy-duty canopy system designed specifically for industrial applications, commercial parks, logistics hubs, and large-scale corporate parking lots. Engineered from high-strength structural steel (S350GD) and protected by a premium Magnelis® ZM430 anti-corrosion coating, this load-bearing framework offers maximum stability and long-term durability. The system is fully expandable and designed to accommodate up to 16 PV modules per base unit (in a horizontal or vertical layout, such as a 2×8 or 4-6 row grid) at an adjustable tilt angle of 10° to 15°. Modern high-efficiency PV modules up to 2,400 mm in length and 1,152 mm in width can be seamlessly integrated.

A standout feature of the K6000 series is its factory-level flexibility for ground anchorage. Two separately orderable foundation anchoring systems are available for the base configuration: First, classic heavy-duty structural steel base plates and fittings designed to be securely bolted directly onto poured concrete pad foundations. Second, specialized C-section deep-anchor profiles designed for ground driving or ramming. This deep-anchoring method enables exceptionally rapid and cost-effective installation on existing paved or asphalted parking surfaces without destructive excavation or damage to sub-surface site infrastructure. Furthermore, the system offers adjustable clearance height and column spacing to perfectly match standardized parking layouts.

At the core of the system is the field-tested, 100% leak-proof K500® Aluminum Drainage System featuring wide primary gutters and side runoff channels for high-capacity water discharge. Based on Western European conservatory engineering standards, condensation and runoff are safely intercepted by internal aluminum channels and controlledly discharged, offering maximum protection for parked vehicles and EV charging infrastructure.

The high-grade material combination of structural steel and A2 stainless steel fasteners guarantees maximum corrosion resistance and an extended service life. It is anchored easily and with structural integrity via metal base consoles on concrete foundations or ground-driven deep-anchor profiles.

As a specialized B2B wholesaler, Cusmade distributes the K500® Carport K6200Z system direct-from-factory from Poland—delivering certified quality under highly efficient B2B wholesale terms.
